• NRF24L01 Wireless Transceiver E01-ML01DP5

NRF24L01 Wireless Transceiver E01-ML01DP5

Model:  E01-ML01DP5
Interface:  SPI
Power:  20dBm
Distance: 2100m
RF connector:  SMA-K
Frequency:  2.4GHz(2400MHz-2525MHz)
Feature:  E01-ML01DP5 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. Those features make the transmitting distance 10 times longer than nRF24L01P itself. The anti-interference shielding cover on the module makes the anti-interference performance better.

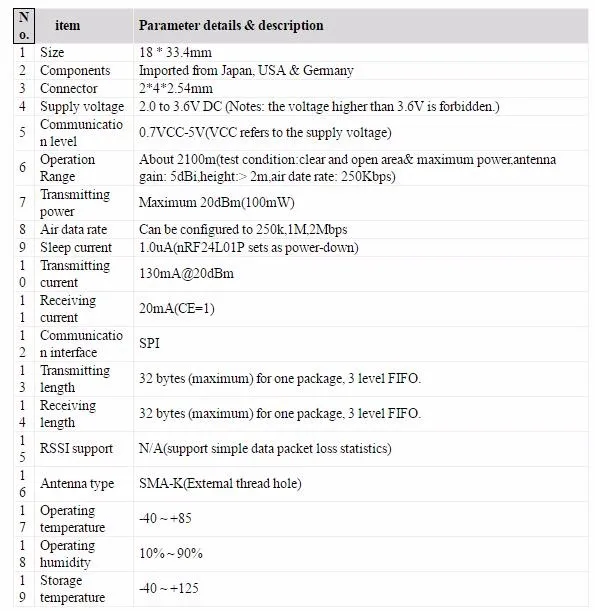

Product Parameters:

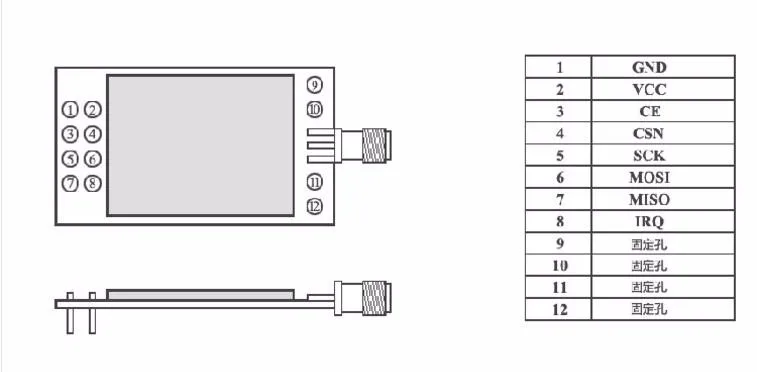

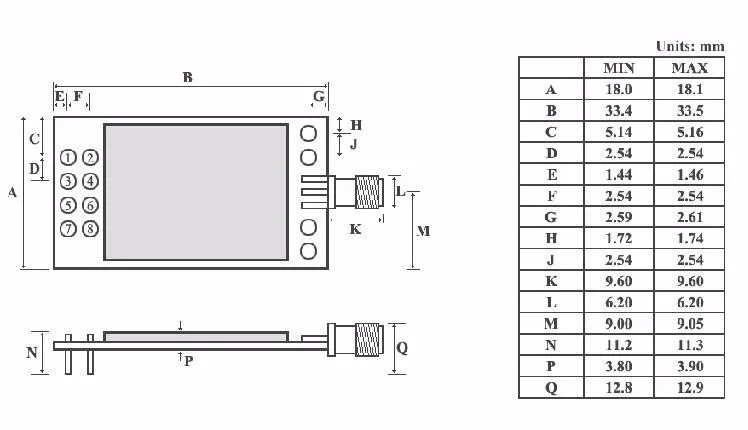

Product size:

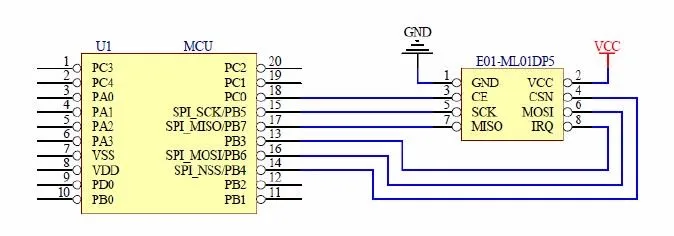

Schematic:



Write a review

Please login or register to review

NRF24L01 Wireless Transceiver E01-ML01DP5

  • Brand: manufacturer
  • Product Code: ZO-1418
  • Availability: Pre-Order
  • 42.00 AED

  • Ex Tax: 40.00 AED
